Description

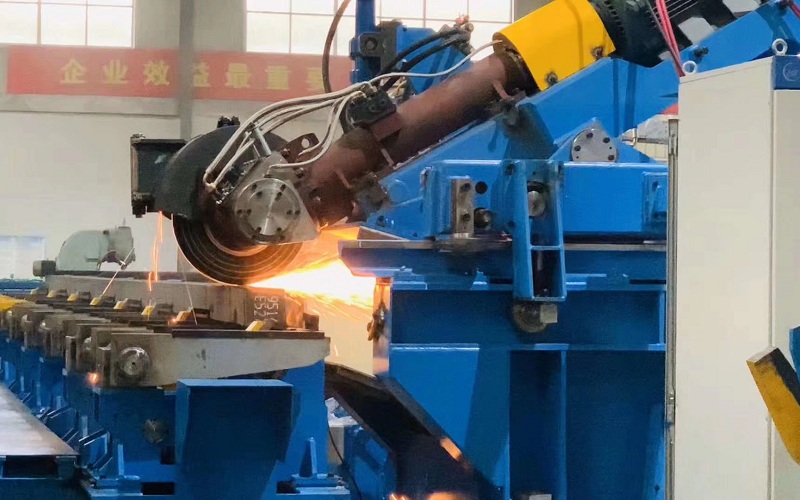

The square billet grinding machine is special equipment that uses the high-power motor to drive the grinding wheel so that the grinding wheel can reach a higher linear speed, and the surface of the square billet can be strongly ground. The equipment can remove the oxide scale and defects on the surface of the billet and meet the requirements of the next process. The equipment adopts the grinding method of grinding head fixing and billet reciprocating along the longitudinal direction.

The billet grinding machine equipment is composed of main engine, trolley, trolley drive device, operation room, main engine protective cover, debris collection, and dust removal system, hydraulic lubrication system, electrical system, etc.

The main features of the billet grinding machine are as follows:

The billet grinding machine is heavy metallurgical equipment with high strength and durability. The equipment uses a high-power grinding head with high efficiency.

The grinding head pressure is controlled by the proportional valve, and the change of grinding head pressure can be controlled at the same time when the trolley speed changes, so floating grinding can be achieved.

The billet grinding machine has multiple safety protection devices and an optimized layout, which not only protects the safety of personnel but also facilitates the operation of personnel.

The square billet grinding machine is a kind of equipment used to grind stone and steel. Its advanced nature is mainly reflected in the following aspects:

1. The square billet grinding machine integrates light, point, machine, and hydraulic control. It adopts PLC and servo constant power control technology to meet the production needs of different products.
2. Constant pressure and constant pressure constant power load control device under the pressure of the grinding wheel of the billet grinder, so that the set cutting depth of the billet does not change during the grinding process because the diameter of the grinding wheel gradually becomes smaller.
3. The square billet grinding machine’s hydraulic control system can automatically adjust the grinding wheel’s grinding pressure to avoid the loss caused by too deep grinding when the table at both ends of the billet is decelerated and reversed.
4. The square billet grinding machine can control the surface defects of the billet, position memory, the determination of the grinding wheel position coordinates and the grinding time are controlled by the computer so that it can perform local automatic grinding.
