Description

Product Description:

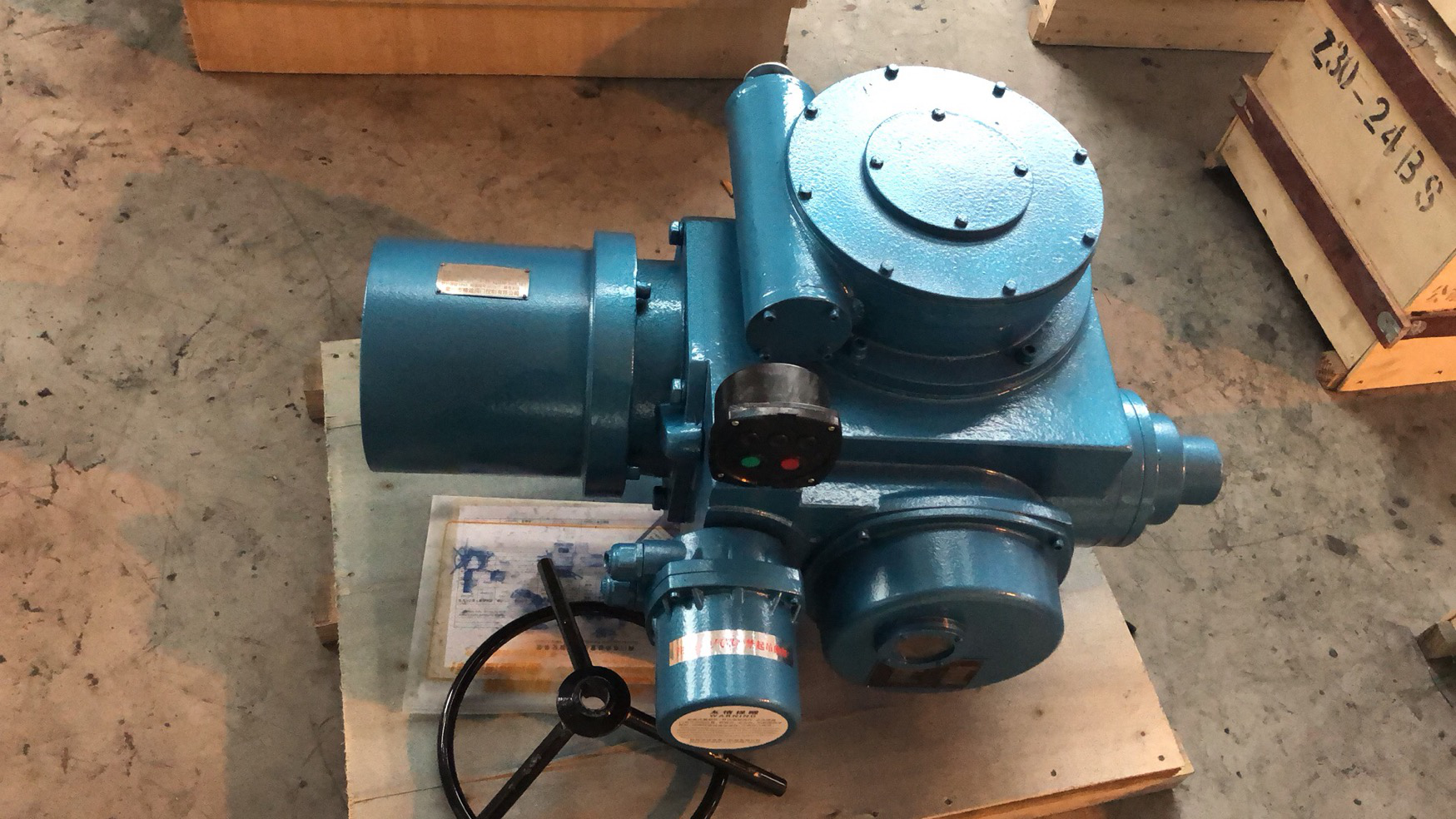

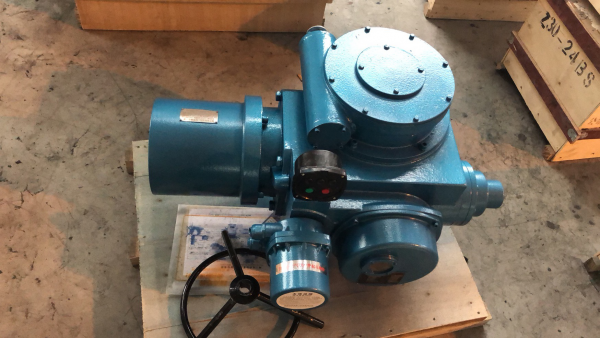

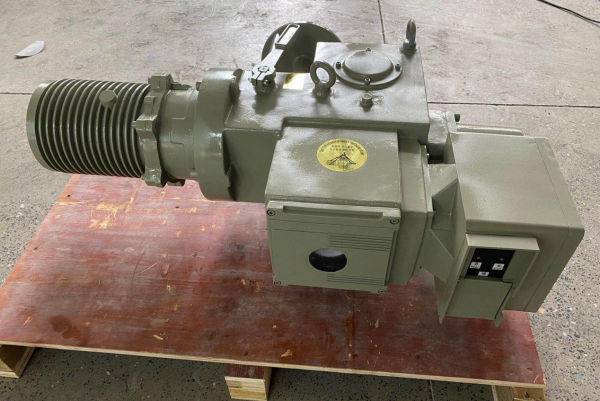

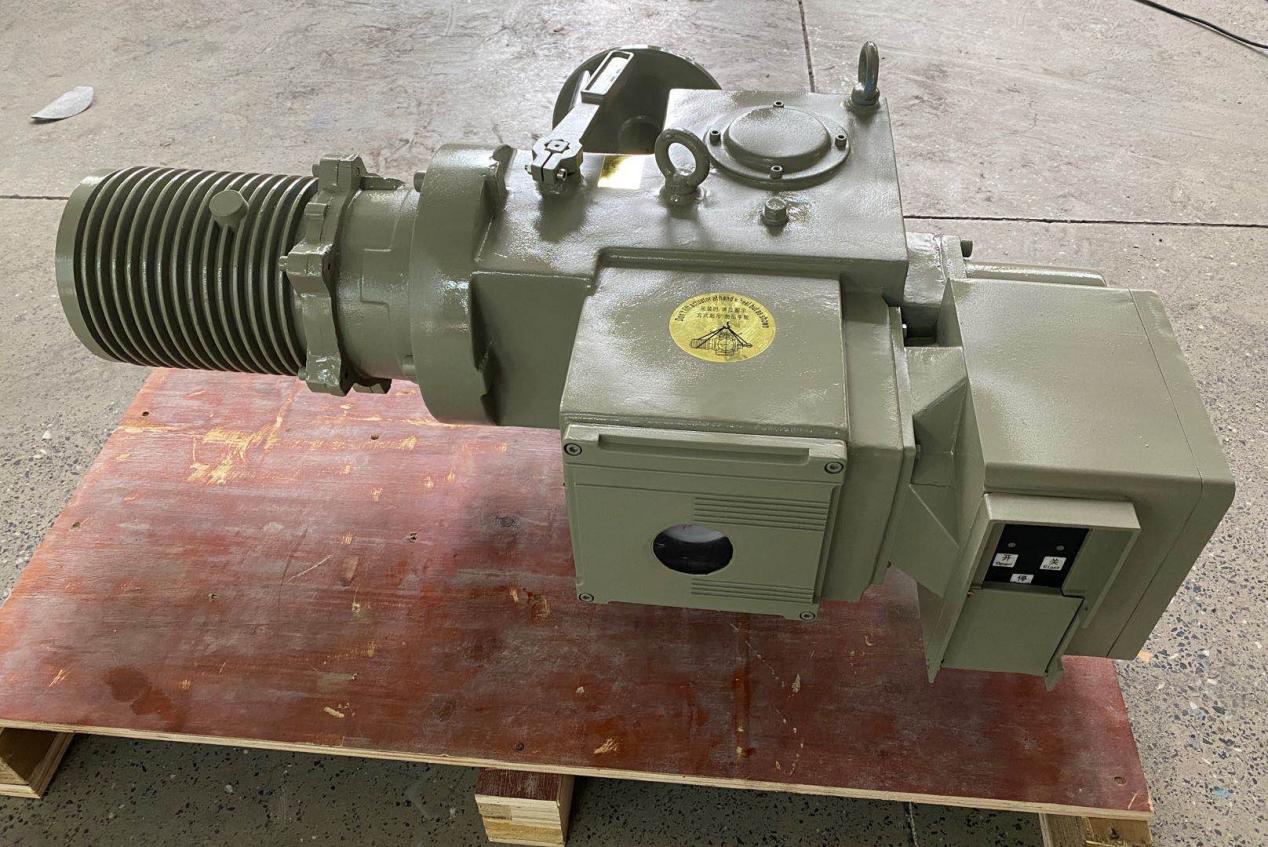

Electric local controller valve actuator

Type:BALL VALVES, Butterfly Valves, PLUG VALVES

Technical details:

*ON-OFF,Remote position controller(Modulating)

*Torque: 60N.m~6000N.m
*Voltage:24 VDC or 24/110/220/380/415/440 VAC

*Thermal Protection

*Torque Switch(≥160NM)

*Manual Override

* Space Heater

* Enclosure rating :IP67(IP68 Optional)

*Explosion proof:BT6/CT6 (Optional)
*5211 standard mounting base

*Dome indicator(Optional)
* Local controller with LED indication(Optional)
* Interlligent with LCD display(Optional)
*Battery packup, available for 24/110/240VAC, 24VDC only(Optional)
*Epoxy polyester powder coating

FAQ

1.Do you know the voltage and wiring control?
Answer: 220VAC,on-off
2.Do you know the torque(N.M)?
Answer:100N.M
3.Do you know the working time?
Answer:30S
4.Do you know the mounting base?
Answer:F03/F05,11X11
5.If the whole set with valve required, which valve?
Answer: Ball valve
6.What’t the material of valve body and valve seat?
Answer:SS304 and PTFE
7.Do you know the end connection?
Answer: Flange
8.Do you know the pressure of valve?
Answer:PN16
9.How about the ambient temperature(Normal)?
Answer: -20°~60℃
