Description

Fluid coupling is a kind of non rigid coupling with liquid as working medium.The pump wheel and turbine of the Fluid coupling form a closed working chamber which can make the liquid circulate. The pump wheel is installed on the input shaft and the turbine is installed on the output shaft.The two wheels are half rings with many blades arranged along the radial direction. They are arranged in coupling direction and do not contact each other. There is a gap of 3mm to 4mm in the middle, forming a circular working wheel.

Characteristics
1) Product electric motor, improve the starting capability of electric motor.
2) Decrease the starting time of electric motor, improve starting functions, and decrease starting average electric current.
3) Decrease the strike and vibration of start, it has the function of protection against over-load.
4) In a multi-motor drive system, it can balance the loads of each electric motor.
5) With simple structure, reliable operation, without mechanical wear and has long operation life.

Advantage：

1,Soft and shockless starting of machines and conveyors;
2,Acceleration of very large masses without the necessity to use overdimensioned motors;
3,Protection of drive against peak loads in case of frequent starting and reversing operations;
4,Excellent vibration separation and shock damping; greatest possible extent of torsional vibration uncoupling in drives subject to vibration.

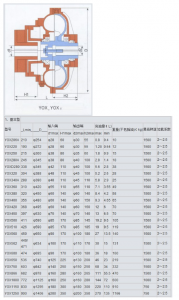

Technical parameters
