Description

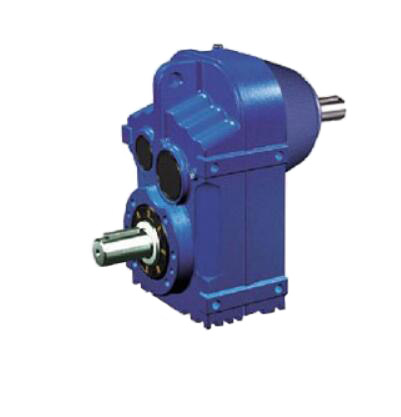

FS series parallel shaft helical gearbox
Parallel output, compact structure, transmitting torque, smooth, low noise and long life.

Technical data:
1. Output torque:200-18000(N.m)
2. Rated power: 0.18-200(kw)
3. Input speed:≤1500(rpm)
4. Output speed:≤393(rpm)
5. Transmission ratio: ≥3.81
6. Install form:M1-M6

Other:
1. Parallel output, compact structure, transmitting torque, smooth, low noise and long life.
2. Installation: base mounting, flange installation, torque arm installation.
3. The basic level 2 input/output rotation direction contrary, same, tertiary, combination another consultation.
4. Output modes: the hollow shaft output or solid shaft output.
