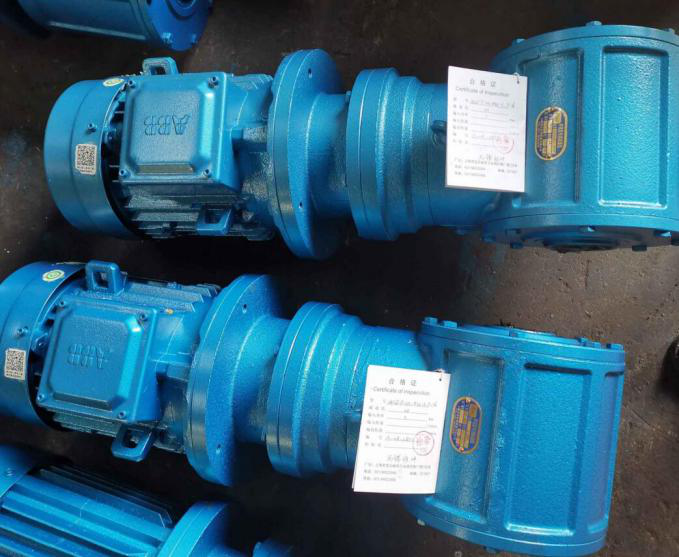

GEAR BOX/ CYCLOIDAL GEAR REDUCER

GEAR BOX WITH SPRING CHARGEING MOTOR

Description

Product description:



GEAR BOX WITH SPRING CHARGEING MOTOR

VCB DETAILS: INDOOR HIGH VOLTAGE VACUUM BREAKER ;

VCB TYPE- VB2;

RATED VOLTAGE – 12KV;

RATED NORMAL CURRENT – 1250AMP;

RATED FREQUENCY – 50HZ;

MOTORVOLTAGE/CLOSING&VOLTAGE/OPENING VOLTAGE -220V DC ;

RATED SHORT CIRCUIT BREAKING  CURRENT -40kA;

RATED LIGHTENING IMPULSE WITH STAND VOLTAGE – 75kV;

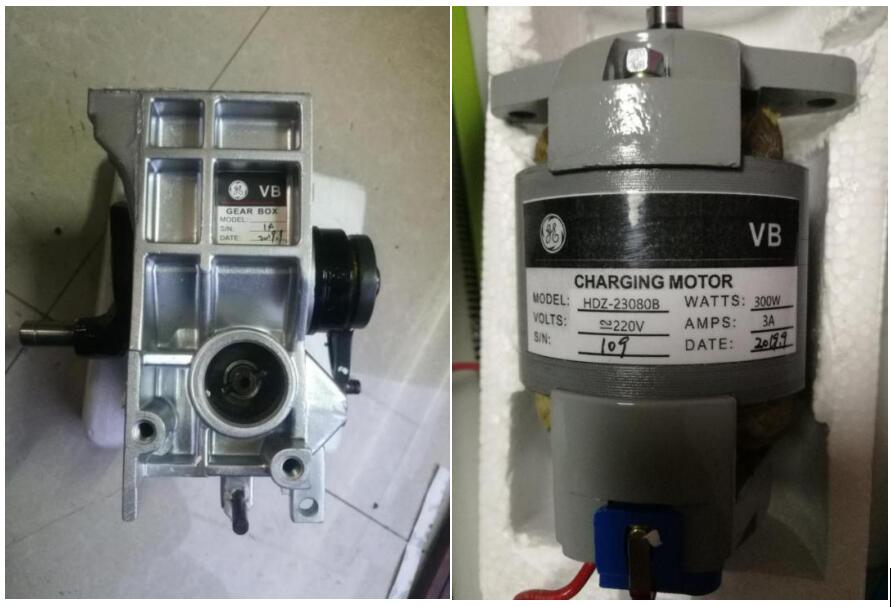

SPRING CHARGING MOTOR DETAILS:

MODEL – HDZ-23080 B VOLTAGE – 220V AC/DC ;

POWER – 300W;CURRENT – 3AMP





Features



  1. Cycloidal gear reducer is a principle adopted K-H-V Planetary Gear less innovative gear.

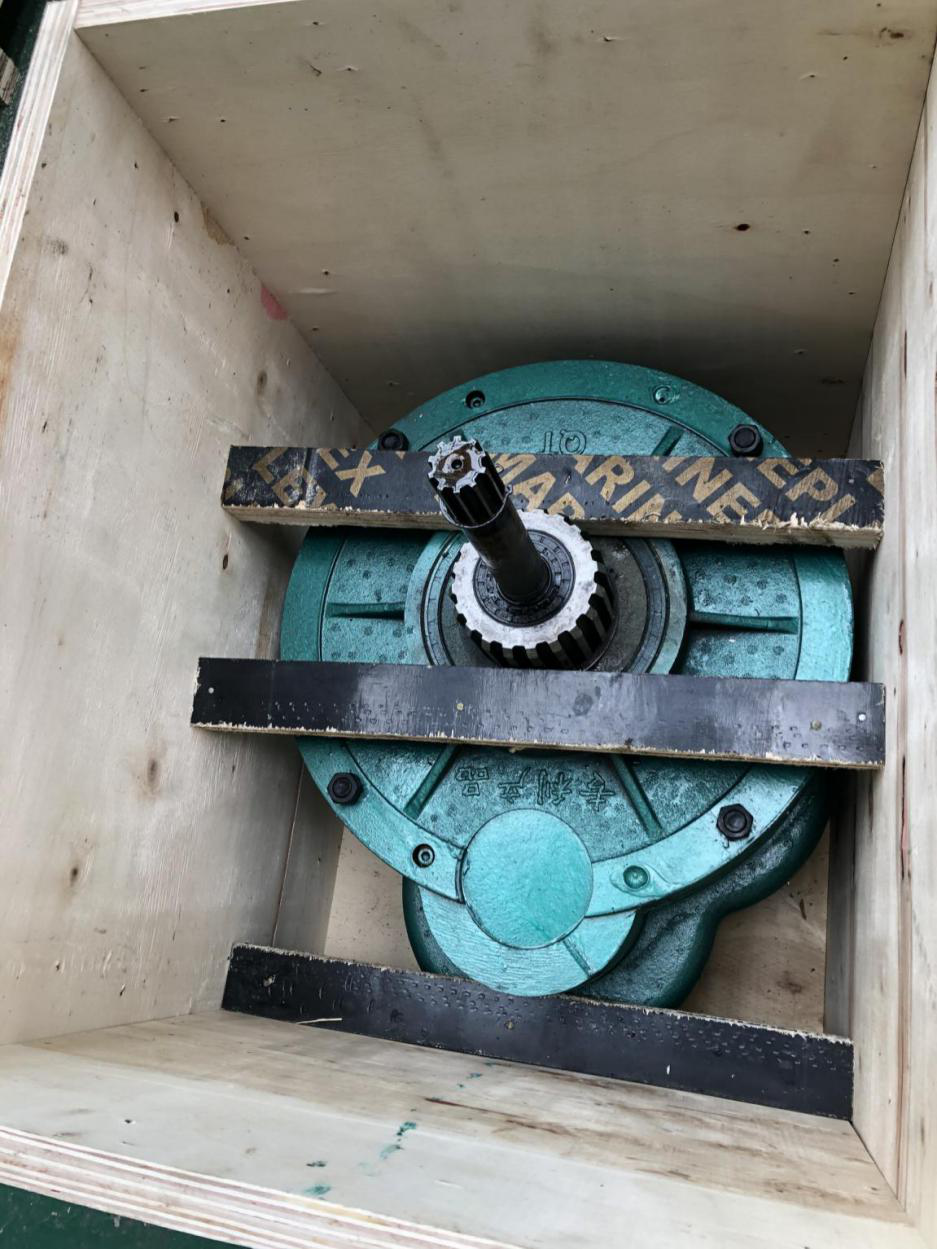

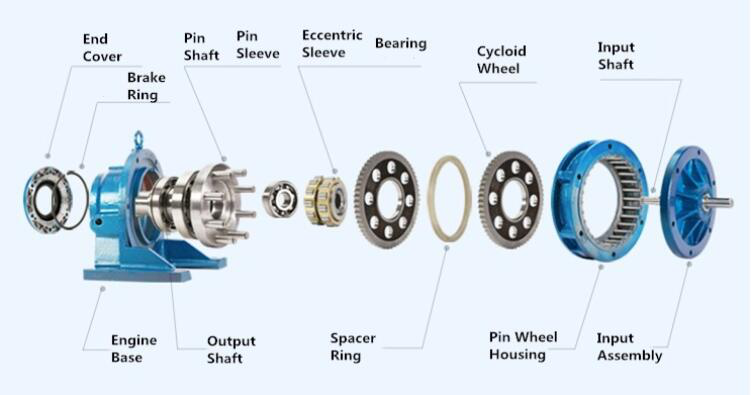

  2. Its transmission process as follows : input shaft equipped with a 180-degree dislocation of the double eccentric sets, replaced with two eccentric turn as a roller bearing arm, the formation of H-, two cycloid round hole at the center shall uplink Eccentric Roller Bearings arm, which cycloidal gear needle round and meshing phase, comprising a difference of the teeth meshing with the gearbox.





PRODUCT CHARACTERISTICS
1.High Speed Ratio and High Efficiency

Single-stage transmission can achieve a deceleration ratio of 1:87, and the efficiency is over 90%. If multi-stage transmission, the deceleration ratio is larger.

2.Compact structure and small volume

Because the planetary transmission principle is adopted, the input shaft and the output shaft are on the same axis, so the structure is compact and the volume is small.

3.Smooth operation and low noise

Cycloidal pin teeth have many meshing teeth, large overlap coefficient and smooth mechanism, which limits vibration and noise to a minimum.

4.Reliable use and long service life

Because the main parts are bearing steel, high strength is obtained by quenching treatment (HRC58-62), and rolling friction is used in some transmission contacts, which is durable and has long service life.





Application area



Metallurgical equipment, mining equipment, automation equipment and so on.
