Description

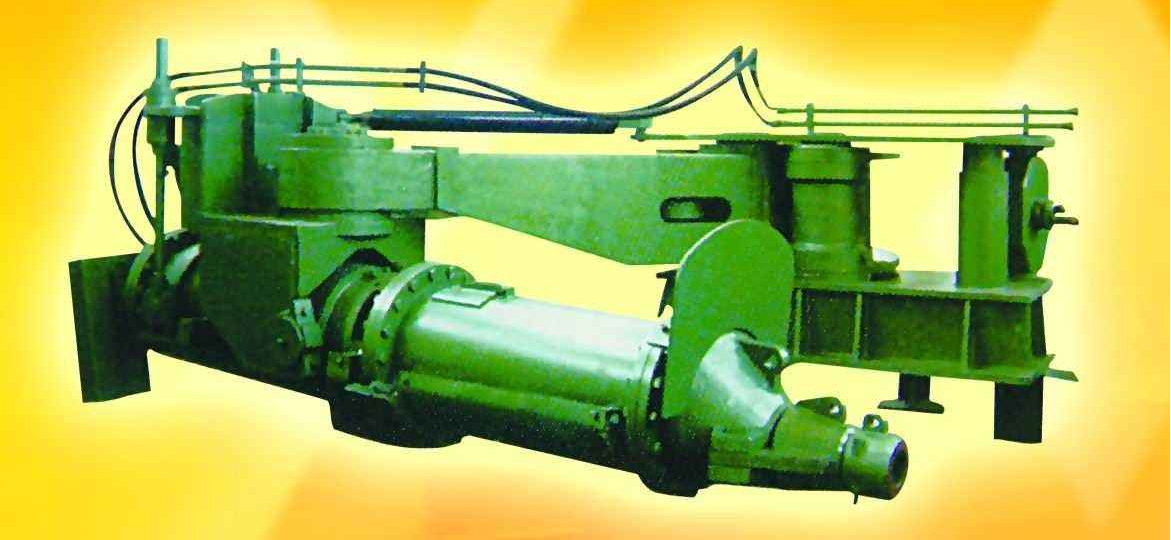

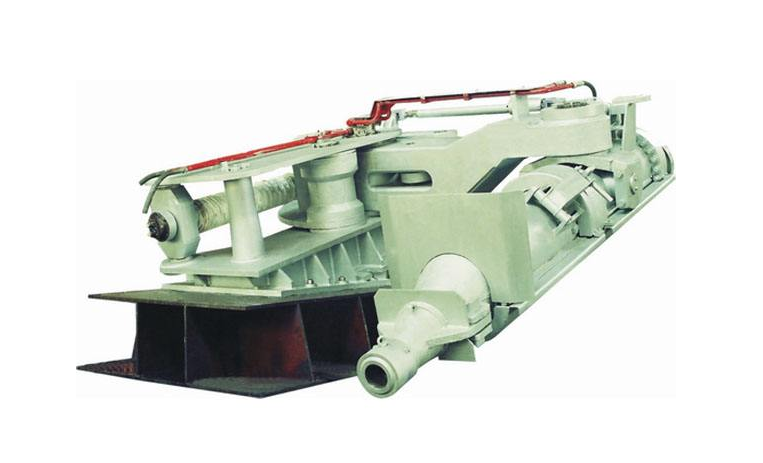

The mud gun is an essential pre-furnace equipment in smelting industry. Its function is to plug the outlet of iron discharge quickly and accurately, so that the blast furnace can quickly enter the next cycle of operations.

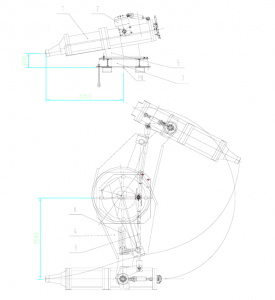

Structural features:

1. Mud making mechanism 2. Hanging mechanism 3. Adjusting rod 4. Rotary mechanism 5. Inclined base6. Pipeline system 7. Foundation embedded seat
2.
3. Technical parameters
4. YP6000E hydraulic mud gun


   Machine structure	Effective volume of clay cylinder	0. 31m2
   	mud cylinder diameter	600mm
   	Bod thrust	6177KN
   	Maximum pressure	25MPa
   	Play mud speed	299mm/s
   	Gun nozzle diameter	150mm
   	Diameter of sludging cylinder	530mm
   	Nozzle adjustment left and right	±100
   	Nozzle adjustment up and down	±150
   	Maximum operating pressure of cylinder	31. 5MPa
   Slewing mechanism	Rotary working Angle	139. 5°
   	Rotary cylinder diameter	310mm
   	Clamping force	621KN
   	Rotary time	9-13s
   	Return Angle allowance	+4°
   	Radius of gyration	3600mm
   	Maximum working pressure of rotary cylinder	32MPa
