Description

Rolls straightener is suitable for non-ferrous metals copper,aluminum,iron, stainless steel bar straightening to direct because Kun is cross,Oblique, axially symmetric distribution.

When the barbiting and then rotate forward,repeated bending, changing direction,to achieve sub symmetric straightening roll.

Features

Compact structure, fact speed and smooth surface.

Variable frequency speed control can be added to the customer requirement.

According to customer’s request to in stall automatic feeding,feeding system.

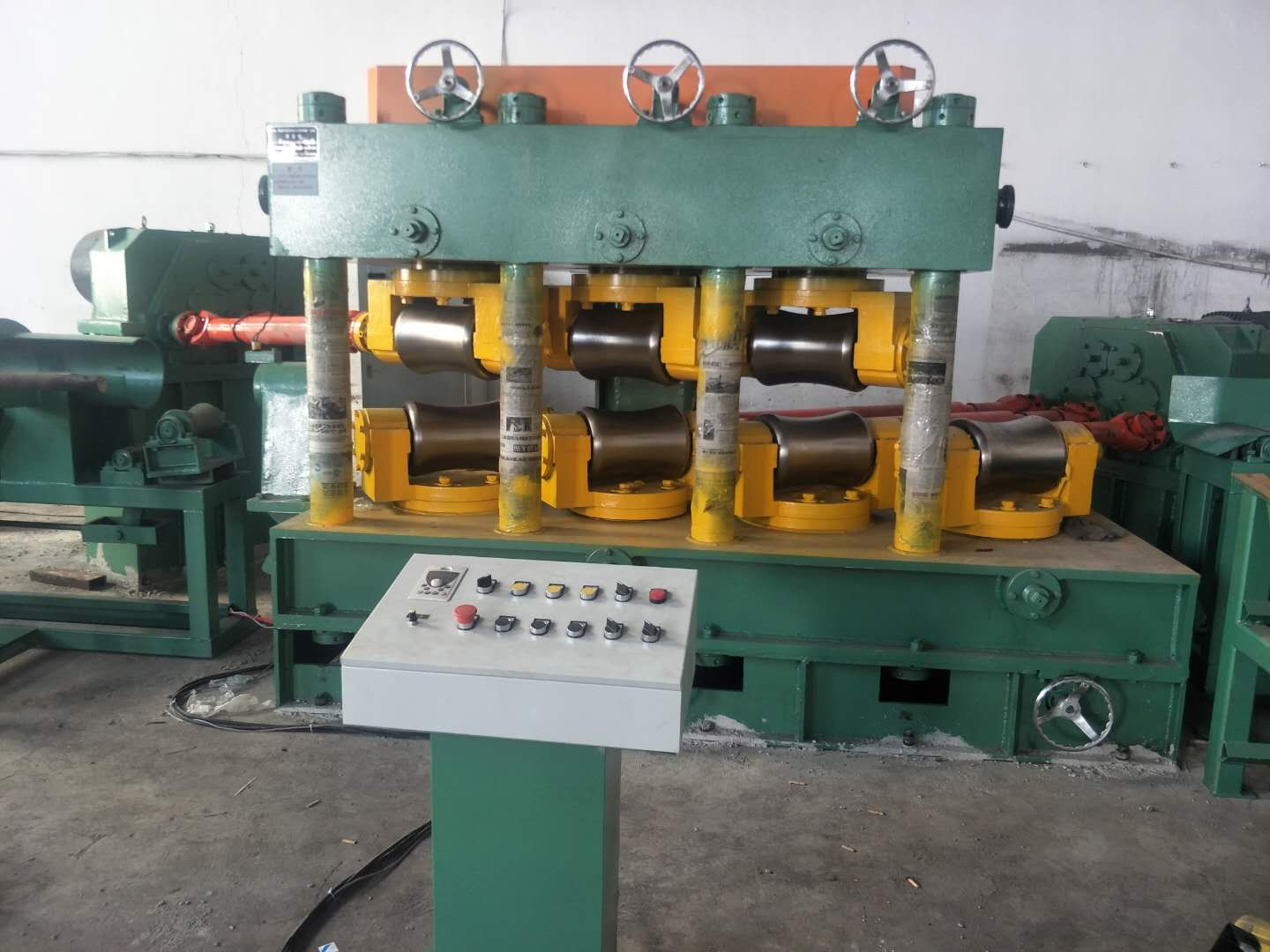

Rolls straightener Model: YGJ120   7 Rolls straightener

The range of bar material to be straightened ： Φ40mm-Φ100mm

The range of tube material to be straightened ： Φ40mm-Φ120mm

Yield limit of straightening bar： ≤800MPa

Straightening speed：10-25m/min（frequency control）

Straightening roll adjust the Angle range： 28—-32 degree

Straightening roll throat  diameter：240mm

Straightening roll length：380mm

Straightening roll form： hyperbolic type

Bending allowed before straightening：≤3mm/m

Straightening precision：≤1mm/m

Maximum stroke of Straightening roll: 140mm

Main motor power： 2X37kw

Straightening roll lifting：automation

Layout form of Straightening roll: 2-2-2-1
