Screw pump

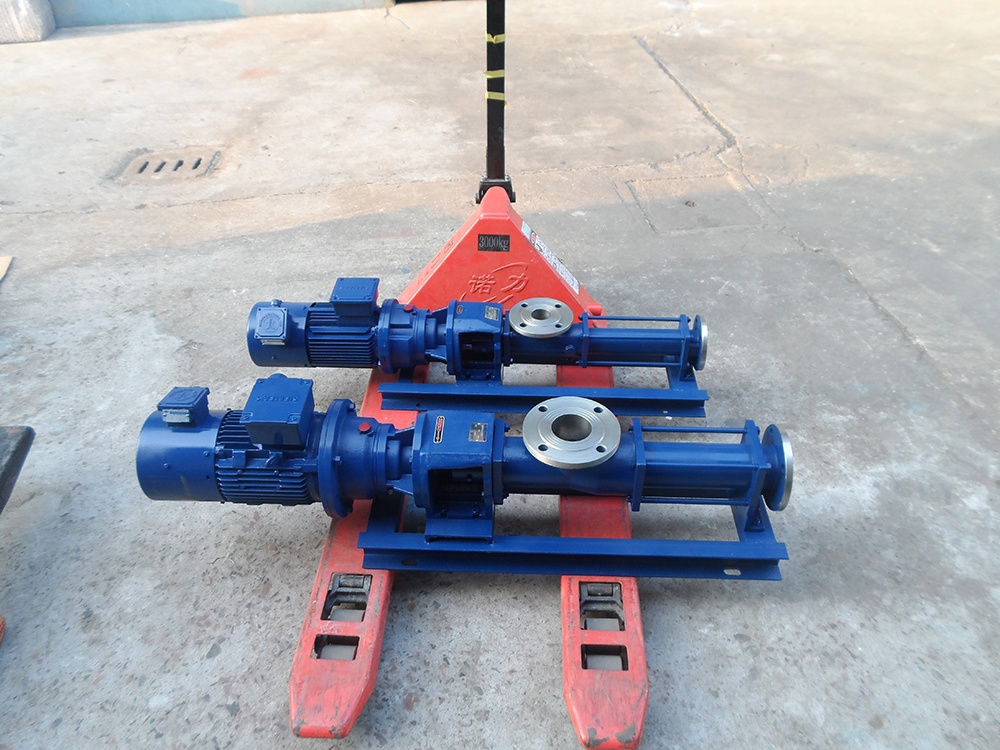

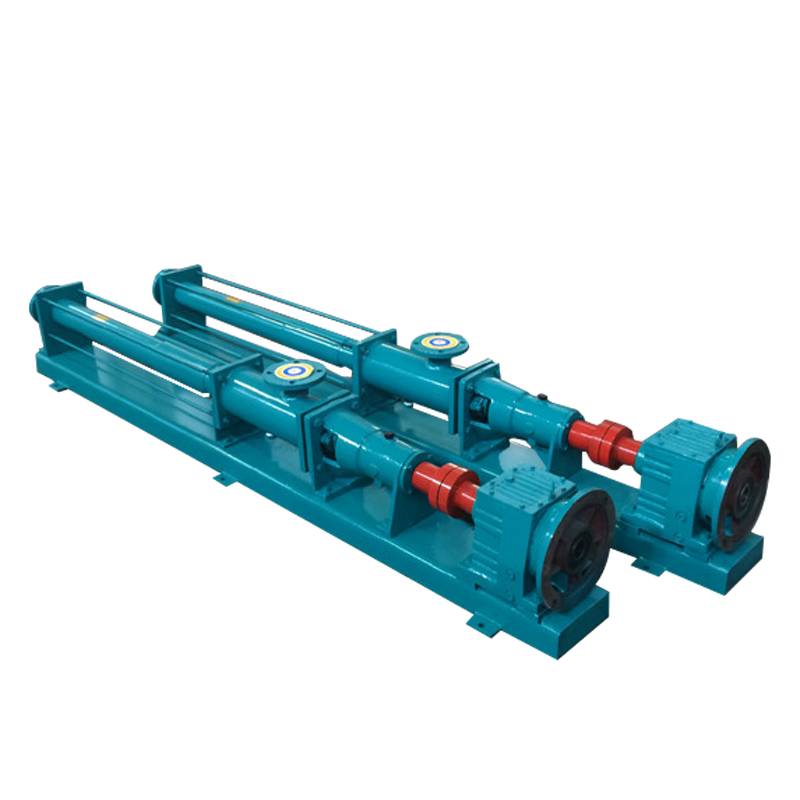

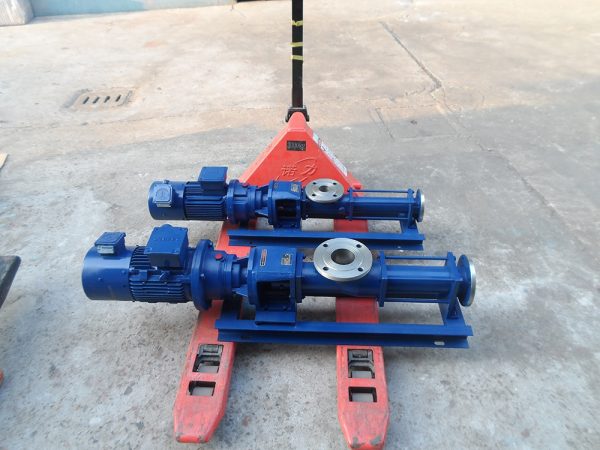

G type single stage screw pump/mud progressive cavity screw pump
Description
Screw pump is used in all fields widely to feed kinds of medium, running at a constant pressure continuously, without and damage when feeding medium, and change the gauging through adjusting rotation speed.
Overview
Transmission medium：Sewage, sludge, heavy oil, all kinds of suspension, emulsion, slurry and waste water

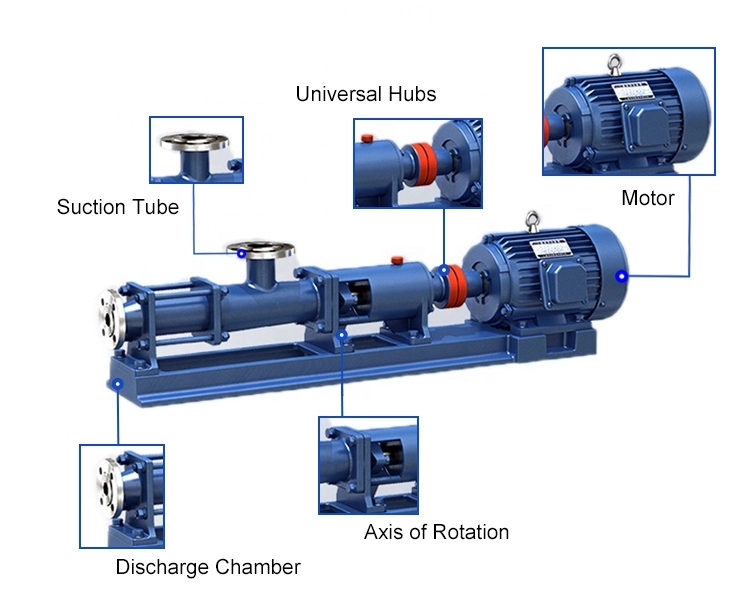

Structure: screw pump
Voltage: As per requirement.
Connection: Clamp, Thread, Welded, Flange
Pressure: High pressure
Material: stainless steel 304 or 316
Motor: ABB/domestic
Technical Parameter
| Rate of flow
m3/h |
Pressure
Mpa |
RMN
R/min |
Motor
Power KW |
NPSH
(m) |
Inlet flange
Diameter (mm) |
Export flange
Diameter (mm) |
Allow
Particles Diameter(mm) |
Allow the fiber length
(mm) |
| 0.8 | 0.6 | 960 | 0.75 | 4 | 25 | 25 | 1.5 | 25 |
| 1.2 | 1.5 | |||||||
| 2 | 0.6 | 960 | 1.5 | 40 | 32 | 2 | 30 | |
| 1.2 | 2.2 | |||||||
| 5 | 0.6 | 960 | 2.2 | 50 | 40 | 2.5 | 35 | |
| 1.2 | 3 | |||||||
| 8 | 0.6 | 960 | 3 | 65 | 50 | 3 | 40 | |
| 1.2 | 4 | |||||||
| 12 | 0.6 | 960 | 4 | 80 | 65 | 3.8 | 45 | |
| 1.2 | 5.5 | |||||||
| 14 | 0.6 | 720 | 5.5 | 4.5 | 100 | 80 | 5 | 50 |
| 1.2 | 7.5 | |||||||
| 22 | 0.6 | 720 | 11 | 5 | 125 | 100 | 6 | 60 |
| 1.2 | 15 | |||||||
| 38 | 0.6 | 720 | 11 | 150 | 125 | 8 | 70 | |
| 1.2 | 18.5 | |||||||
| 56 | 0.6 | 630 | 15 | 150 | 150 | 10 | 80 | |
| 1.2 | 30 | |||||||
| 100 | 0.6 | 500 | 30 | 200 | 200 | 15 | 110 | |
| 1.2 | 55 | |||||||
| 150 | 0.6 | 400 | 45 | 250 | 250 | 20 | 150 |
