Slitting machine

Description

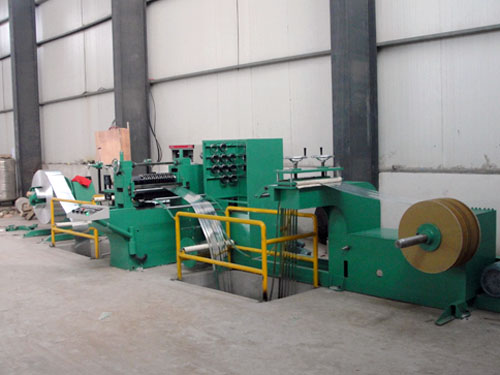

Shearing machine is also called longitudinal cutting line, longitudinal cutting machine, slitting machine, which is used for unwinding, longitudinal cutting, and rewinding the metal coil plate into the required width of the tape coil.

Suitable for processing cold rolled and hot rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials coated and plated on the surface.

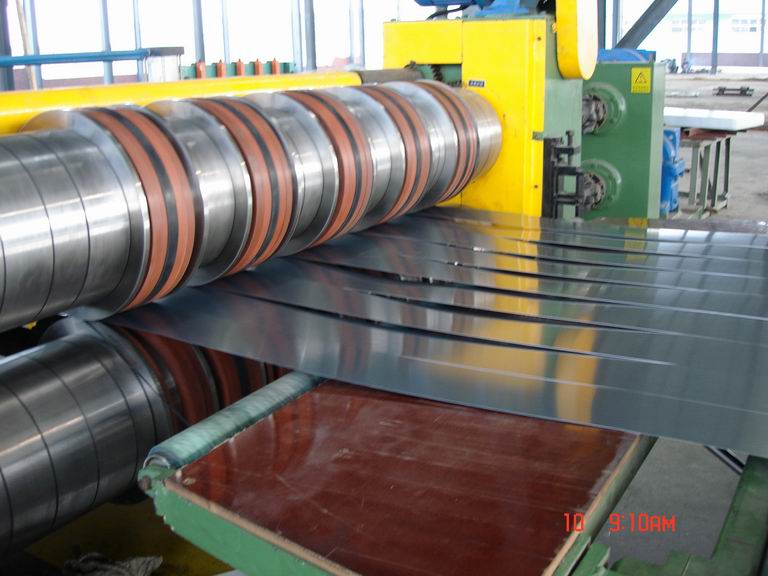

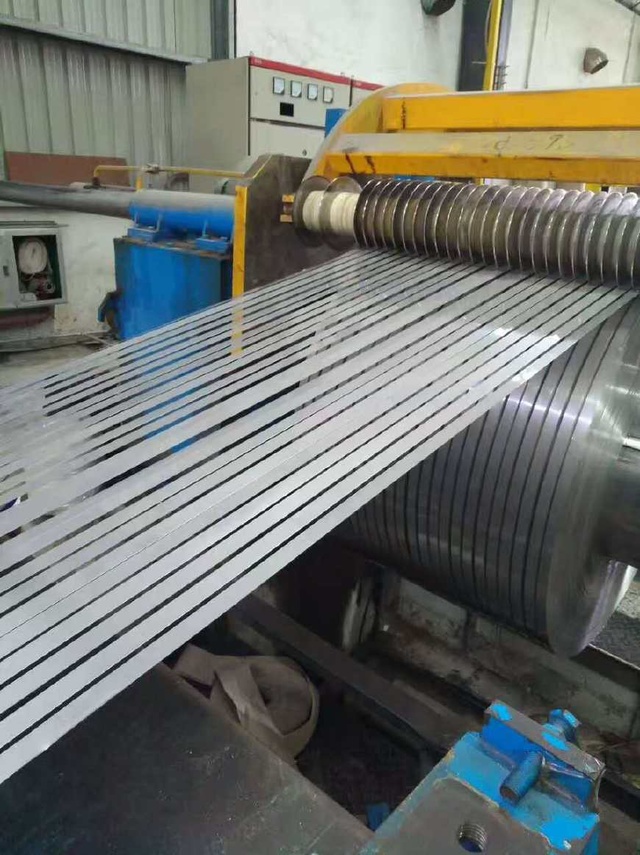

1. Application: It is suitable for longitudinal shearing of metal strips and rewinding the cut strips into rolls.

2. Advantages: convenient operation, high cutting quality, high material utilization rate, cutting speed stepless speed regulation and other characteristics.

3. Structure: it consists of uncoiling (uncoiling), feeding positioning, strip cutting, coiling (rewinding), etc.

4. Applicable materials: tinplate, silicon steel sheet, aluminum strip, copper, stainless steel plate, galvanized plate, etc.

5. Applicable industry: transformer, motor, home appliance, automobile, building materials, packaging industry, etc.

Main technical parameters

  1. Raw material parameters

Material cold-rolled plate, stainless steel plate, aluminum plate, galvanized plate, iron plate, color coated plate

Plate thickness is 0.15~ 3.0mm

Board of 500 ~ 1600 mm wide

Coil diameter 508 mm/Φ Φ 610 mm

Coil diameter Φ 1600 mm or less

The maximum weight of rolls is 10000kg

  1. Parameters of finished products

Strip Φ inside diameter of 508 mm

Strip diameter Φ 1600 mm or less

The maximum winding weight is 10000kg

Minimum strip width 15mm(plate thickness ≤0.5mm)

Width accuracy ±0.05mm (plate thickness ≤1mm)

±0.1mm (plate thickness >1.1mm)

Shear burr 5% plate thickness, minimum 0.03mm

Straightness of strip 0.5mm/1000mm(standard high quality board, board width >100mm)

  1. Equipment parameters

7 slitting strips (thickness: 3mm)

12 pieces (2mm thick)

25 pieces (1mm thick)

55 pieces (thickness <0.5mm)

The shear speed max150m/min

The total power is about 220KW

MODEL Thickness(mm) Width(mm) Slitting article number Slitting speed   m/min Open book weight              (ton)
ESL-0.5×1300 0.15-0.5 500-1300 24 50-150 7
ESL-2×1300 0.3-2 500-1300 12-30 50-180 7/15
ESL-2×1600 0.3-2 500-1600 12-30 50-180 7/15
ESL-3×1600 0.3-3 500-1600 8-30 50-180 15
ESL-3×1800 0.3-3 900-1800 8-30 50-180 20
ESL-4×1600 1-4 900-1600 6-30 50-120 20
ESL-6×1600 1-6 900-1600 6-30 30-80 30
ESL-12×1600 2-12 900-1600 5-30 20-50 30
