Description

Solenoid valve is used in electromagnetic control of industrial equipment, is used to control the fluid automation base components, belongs to the actuator.Used in industrial control systems to adjust the direction, flow, speed, and other parameters of the medium.

Working principle

Solenoid valve has closed cavity, open a hole in different position, each hole to connect different tubing, cavity piston is among, both sides are two electromagnets, which face the magnet coil electricity body which side will be attracted to, through to control the movement of the valve to open or close the different discharge of oil hole, and the oil hole is always open, hydraulic fluid will enter the different oil drain, and then through the oil pressure to push the cylinder piston, piston drives the piston rod, piston rod drive mechanism.

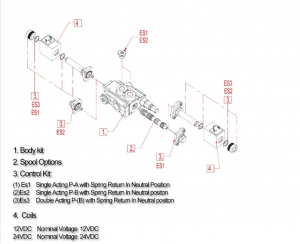

Structure

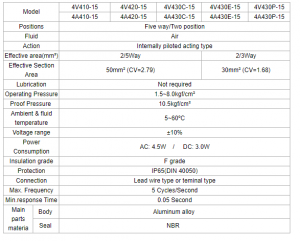

Technical specification
