Description

Arc system is the latest development of ARC1500 hign efficiency arc spray and control system equipped with our ZDI-2000 high-power electric arc spraying power supply.

Main technical parameters:

Supply voltage：single phase AC 220 V

Wire feeder control box power consumption： ≦450W

Compressed air pressure：≥5.5 Bar

Wire feeding speed adjustment range：0～133 revolutions per minute

Feeding speed adjustment range: 0-18.7 M/MIN

Change rate of load speed: ≤±0.5 %

Diameter of spraying wire: 3.17 mm or 4 mm

Maximum spraying current: 1500 A

spray gun (including wire feed) weight: 9KG

Maximum spraying efficiency: 150KG/h

Advantages:

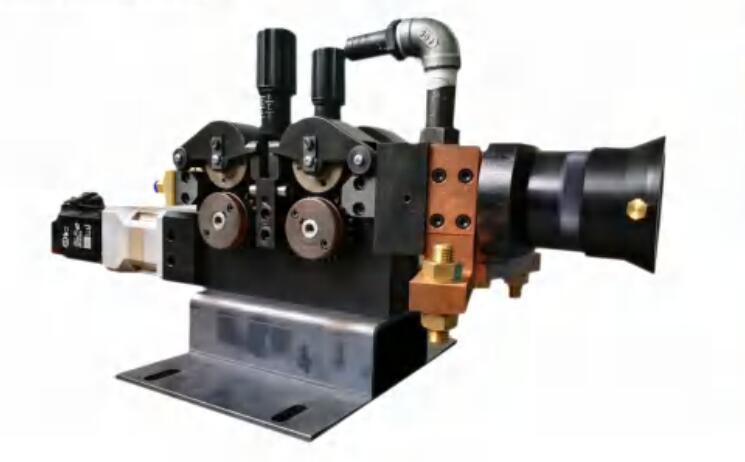

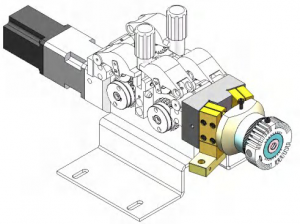

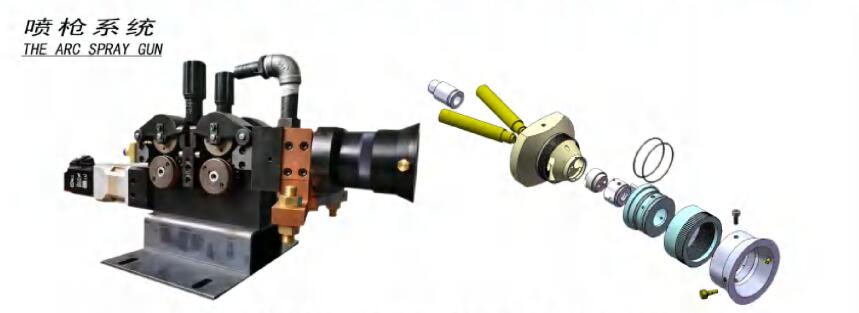

ARC 1500 high efficiency arc spary gun in order to adapt to modern production line of efficient,saving production concept,using a new type of wire and atomization design,wire part use efficient AC drive motor,the up wire wheels and down wire wheels are all got power.

We customize the products according to the customers’ requirements.
