Steel casting ladle
Foundry pouring Iron and steel casting ladle
Description

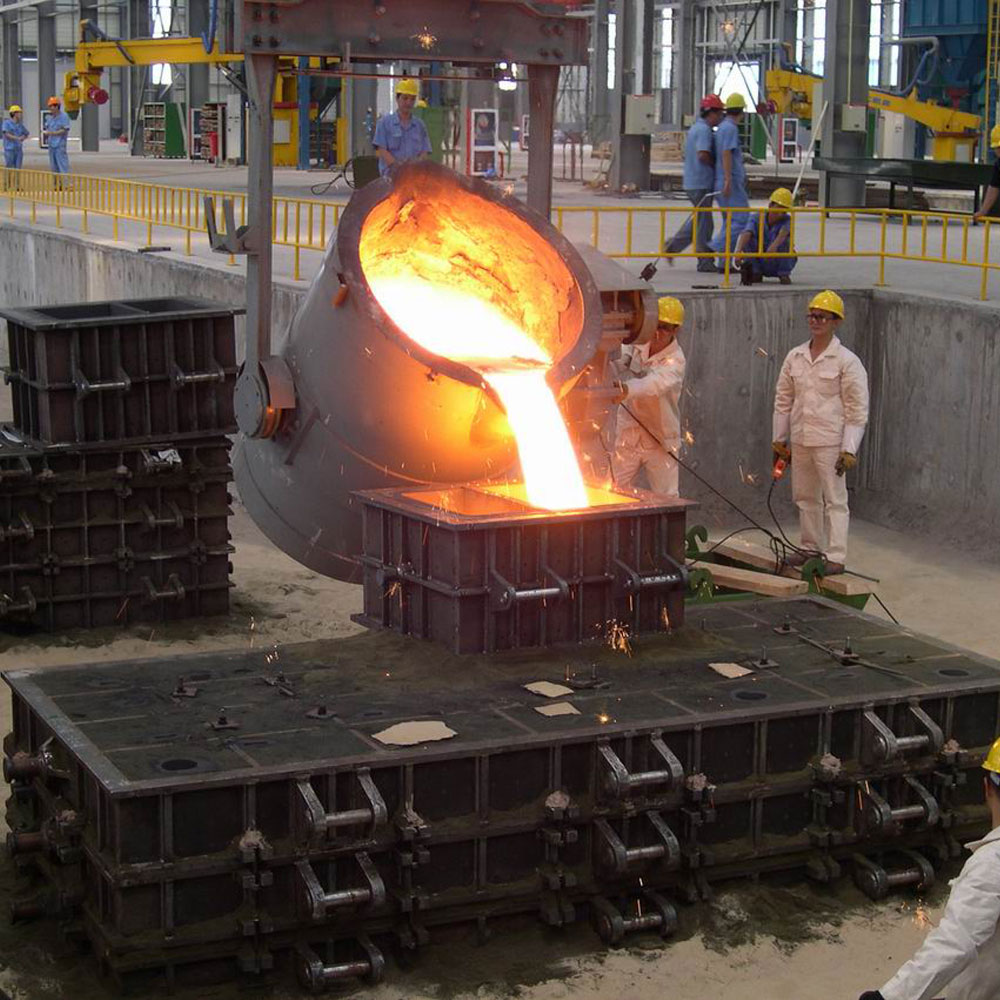

Hot metal ladle for foundry casting operation,after undertaking iron liquid in front of the furnace , send it to the casting model place to pour by driving car.
Technical parameter
| Capacity(ton) | Ladle diameter (mm) | Ladel Height (mm) | Outside size (mm) |
| 0.3 | 512 | 540 | 1220*720*1385 |
| 0.5 | 590 | 620 | 1260*815*1400 |
| 0.7 | 675 | 705 | 1362*864*1465 |
| 1 | 750 | 770 | 1425*1020*1700 |
| 1.5 | 840 | 850 | 1532*1145*1836 |
| 2 | 915 | 919 | 1648*1255*2039 |
| 2.5 | 985 | 1025 | 1750*1346*2140 |
| 3.0 | 1050 | 1088 | 1778*1390*2168 |
| 4.0 | 1140 | 1208 | 2000*1520*2400 |
| 5.0 | 1192 | 1250 | 2011*1582*2345 |
| 8.0 | 1420 | 1470 | 2225*1910*2715 |
| 10.0 | 1544 | 1790 | 2362*2044*2946 |
(Accept Customization)
Advantage:
- Reasonable choose the rotation center, convenient operation, basic can compound when pouring is finished .

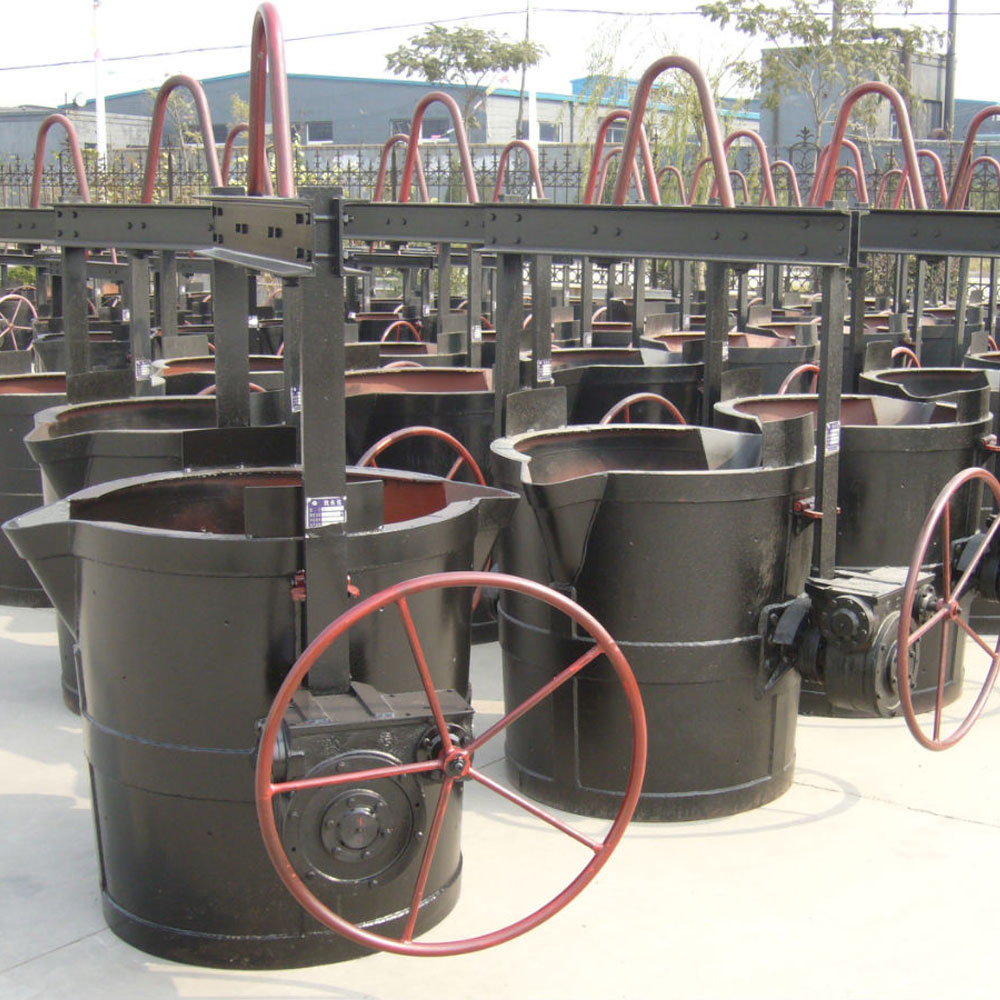

- Adopt double worm wheel pair transmission.Although manufacturing demand is high, but flexible transmission, two-way reversible .
- Enclosure is made of thicker steel plate, the bottom of the bag structure by adopting the combination of taper, bottom rim, welding triple insurance, which extended the service life, and ensure the safety of the operator .
