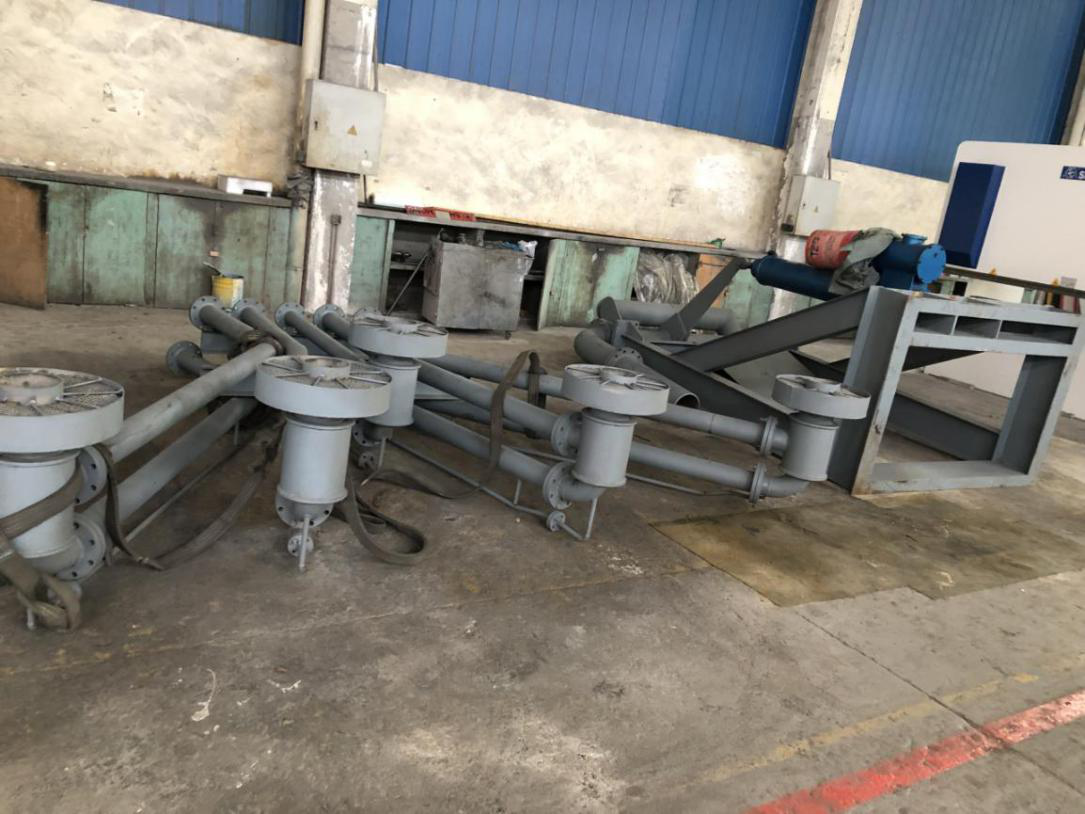

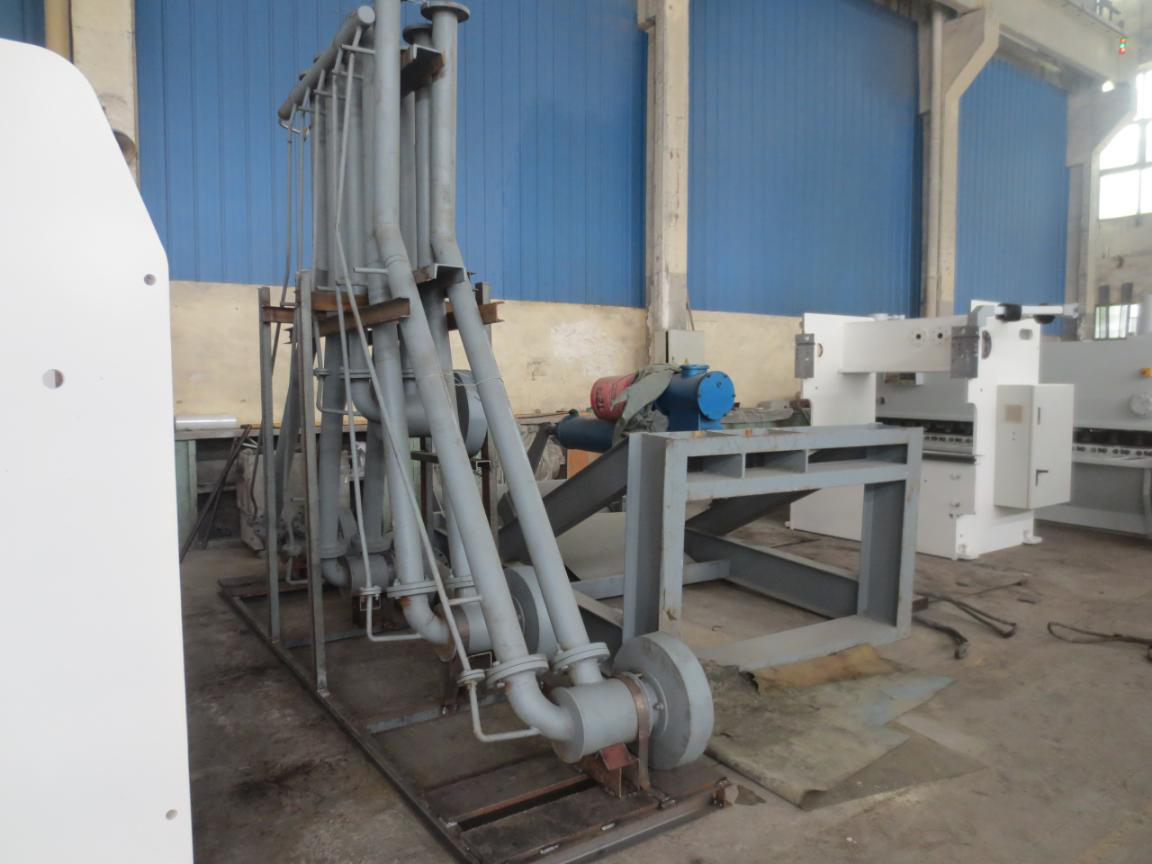

TUNDISH PREHEATING DEVICE

DRYING STATION

FUNCTIONAL ASSEMBLY: CCM

EQUIPMENT: TUNDISH

Description

Overview



Guarantee: 18months from the date of shipment or 12 months from the date of received, which ever is early.

After-sales service provided: Online-support installation, commissioning and training.







Supply scope(BOM)





S/NO. ITEM QTY Description
1 Mainframe rack 1 ▼Travel switch and base, hitter: 1 set                                                                                                    ▼Asbestos gasket (packed on the gas pipe of the main frame)
2 Bearing housing 2 ▼2pcs oil cup                                                                                                                                                      ▼2 set of copper inner sleeves
3 Compound shaft 1 ▼Gas seal assembly (installed): 1 set
4 Electrohydraulic push rod 1 ▼10TON

▼415V

▼stroke1500

5 Burner 5 ▼With fire cover
6 Cross arm 1 ▼Long open fire gas pipe: 1EA
7 Fan 1 ▼with outlet flange and connecting piece

▼5.5kw,Clockwise

▼415V

8 Fan riser 1 ▼Air riser (explosion-proof bag tube, pipe clamp)
9 Gas riser 1 ▼Nitrogen purge valve and long open fire valve: 1 set
10 Pneumatic shut-off valve 1 ▼DN200 pneumatic quick shut-off valve with oil-water separator, positioner, and etc.
11 Pressure Switch 1 ▼0~5000pa low pressure alarm
12 Manual adjustment valve 2 ▼DN200

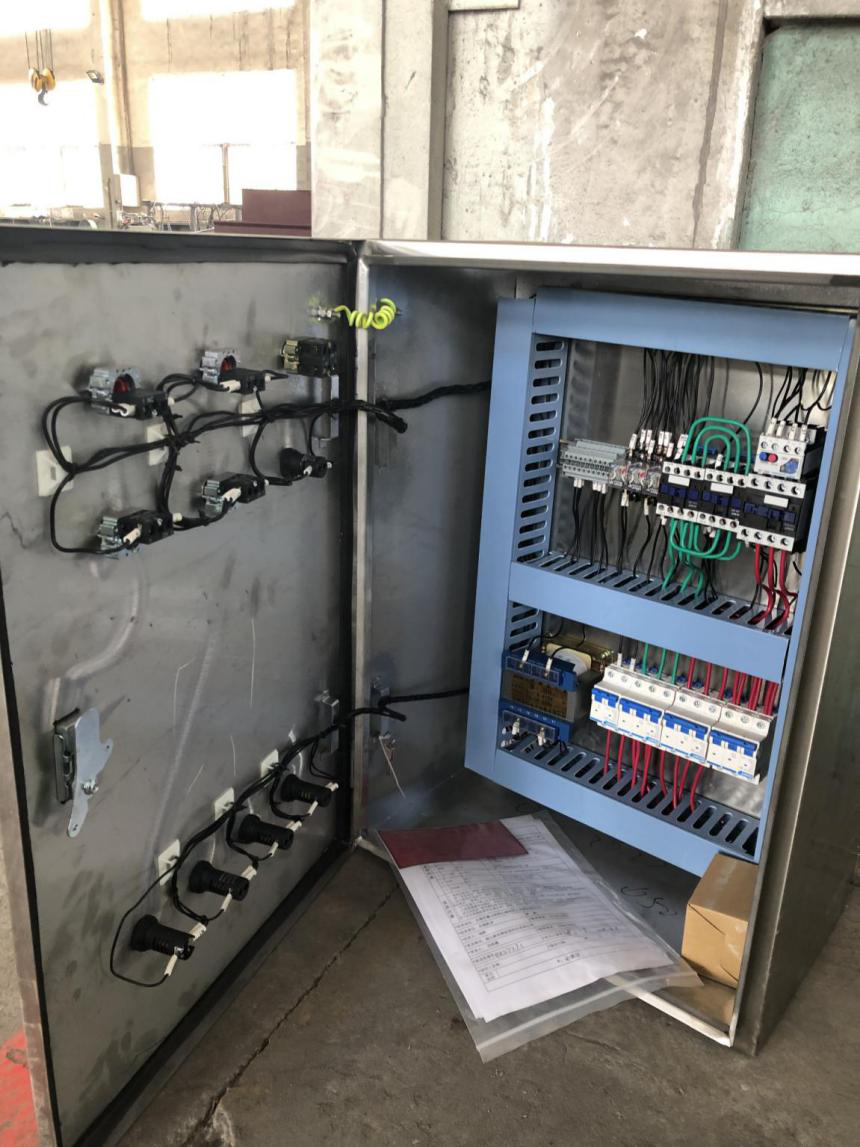

13 Electric control box 1 ▼The key is inside the box
