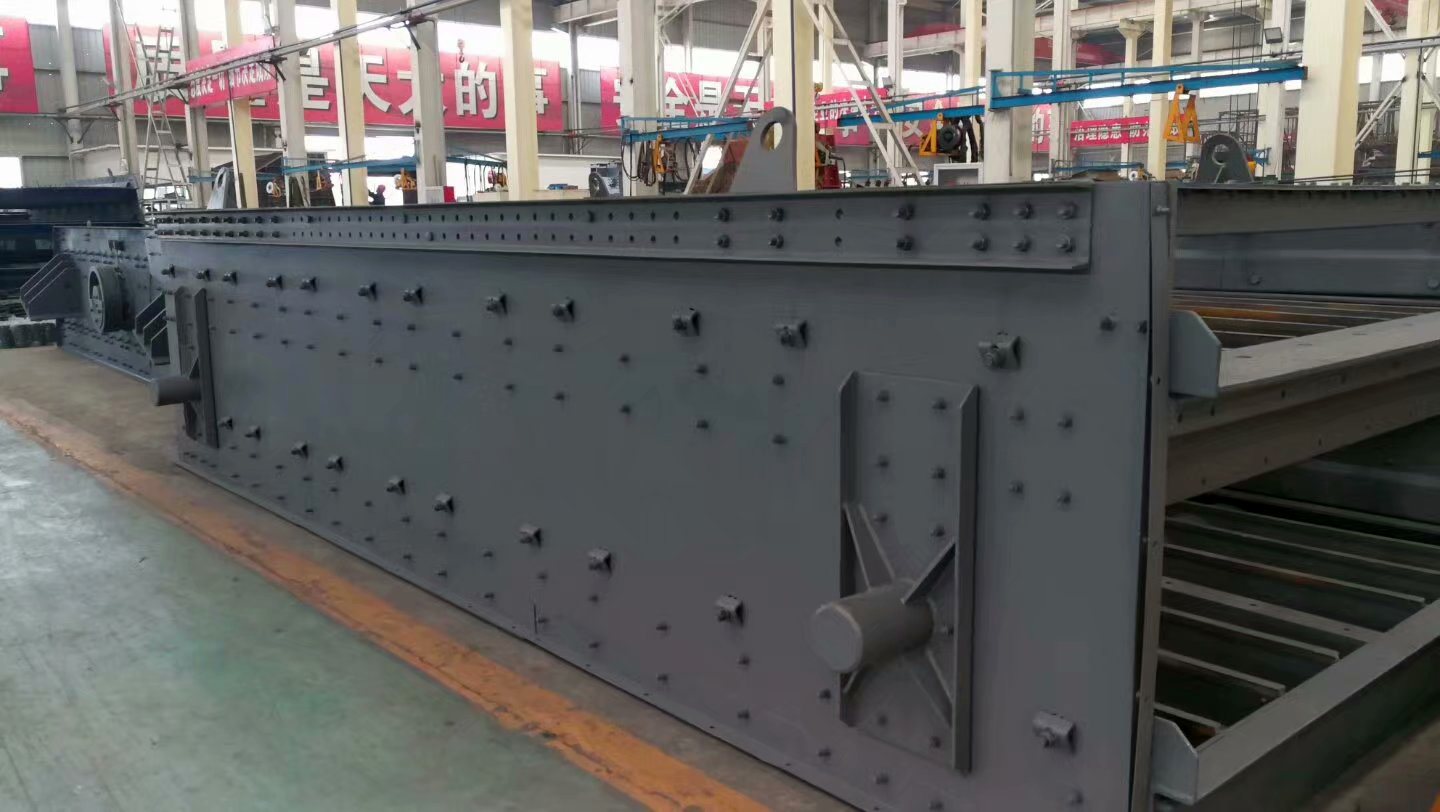

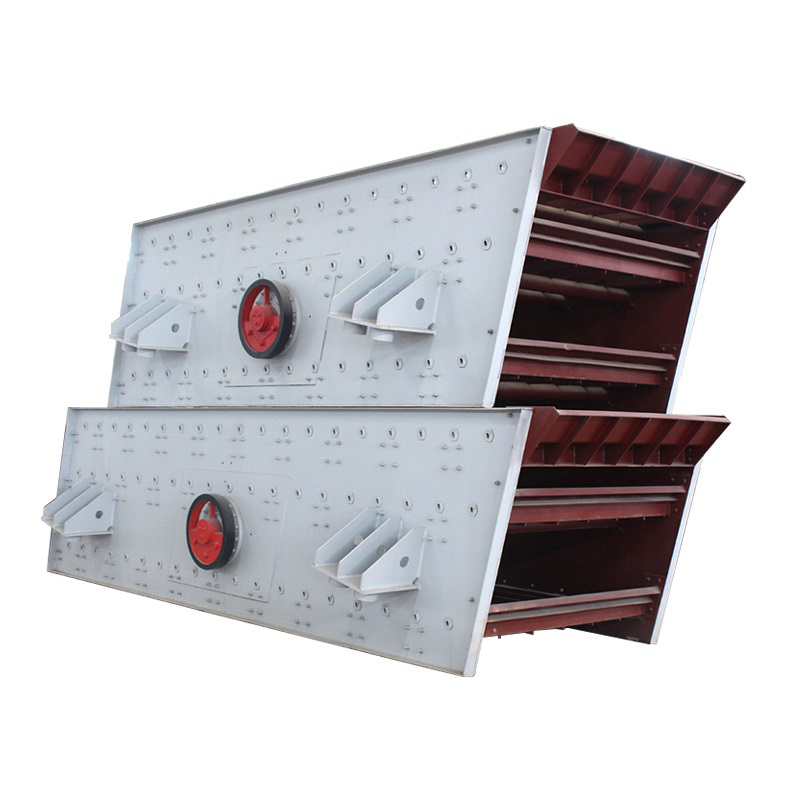

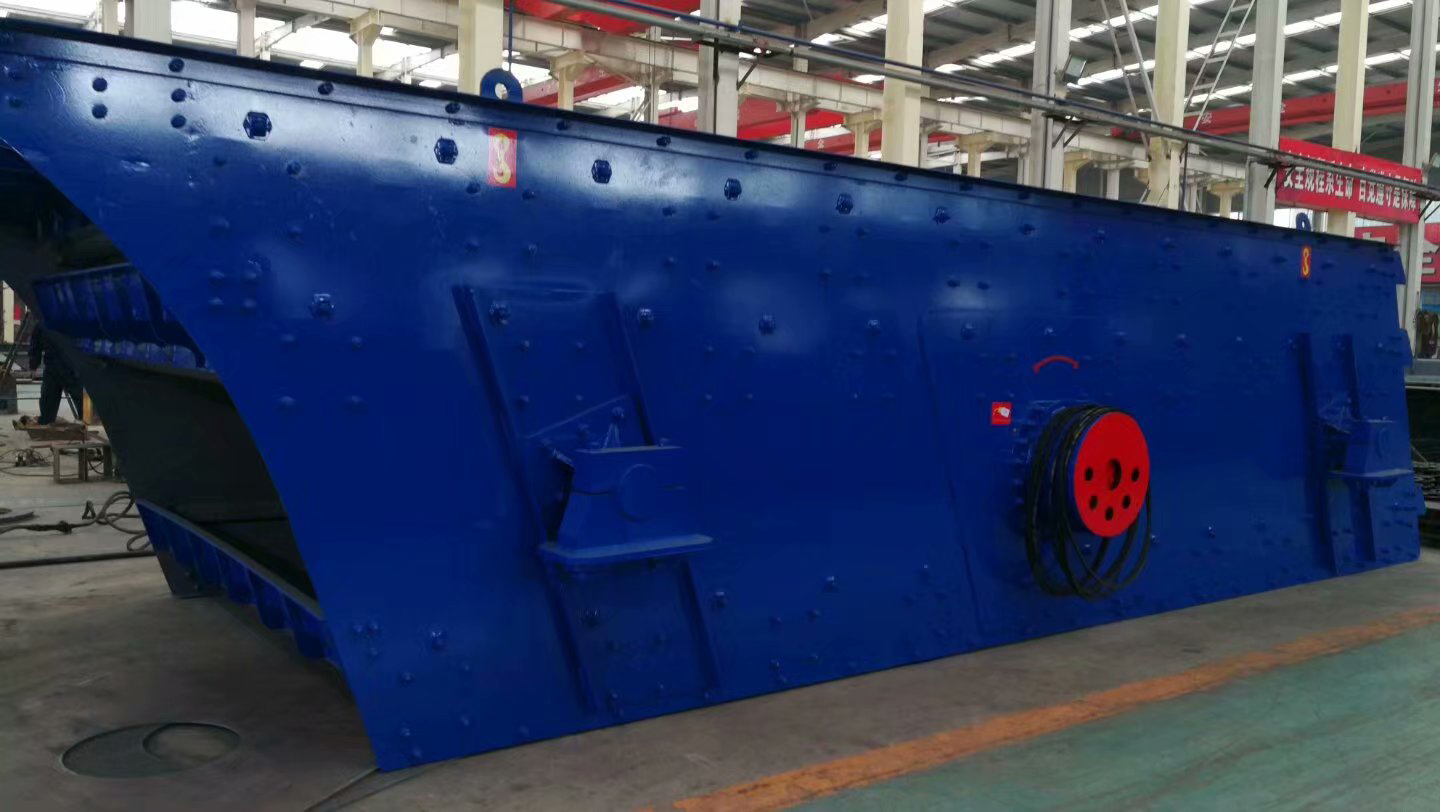

Vibrating screen
Description
Vibrating screen is a new type screening equipment, and the vibration trajectory is ellipse. It is designed for quarry to screen stone, and it is also used for coal, beneficiation, building material, and chemical. The vibrating screen is advanced structure, strong excitation force, low vibration noise, and easy maintenance, etc.
Vibrating screen uses electric exciter as vibrating screen vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the machine’s feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet repectively.
Technical Parameters:
| Type | ScreenSpec
(mm) |
Screen Deck | Screen Mesh
(mm) |
Feeder Opening
(mm) |
Capacity
(t/h) |
Power
(kw) |
Vibrating Frquency (r/min) | Double Amplitude
(mm) |
| 2YK1237 | 1200×3700 | 2 | 4~50 | ≤200 | 15-86 | 15 | 960 | 4~8 |
| 3YK1237 | 1200×3700 | 3 | 4-50 | ≤200 | 15-86 | 15 | 960 | 4~8 |
| 2YK1548 | 4800×1500 | 2 | 3~100 | ≤400 | 30~275 | 15 | 870 | 5~9 |
| 3YK1548 | 4800×1500 | 3 | 3~100 | ≤400 | 30-275 | 15 | 870 | 5~9 |
| 4YK1548 | 4800×1500 | 4 | 3-100 | ≤400 | 30-275 | 22 | 870 | 5~9 |
| 2YK1848 | 4800×1800 | 2 | 3~100 | ≤400 | 56~330 | 18.5 | 870 | 5~9 |
| 3YK1848 | 4800×1800 | 3 | 3~100 | ≤400 | 56~330 | 18.5 | 870 | 5~9 |
| 4YK1848 | 4800×1800 | 4 | 3-100 | ≤400 | 56-330 | 22 | 870 | 5~9 |
| 2YK1860 | 6000×1800 | 2 | 3~100 | ≤400 | 65~586 | 18.5 | 870 | 5~9 |
| 3YK1860 | 6000×1800 | 3 | 3~100 | ≤400 | 65~586 | 22-30 | 870 | 5~9 |
| 2YK2160 | 6000×2100 | 2 | 3~100 | ≤400 | 81~720 | 22-30 | 730 | 5~9 |
| 3YK2160 | 6000×2100 | 3 | 3~100 | ≤400 | 81~720 | 30-37 | 730 | 5~9 |
| 2YK2460 | 6000×2400 | 2 | 3~150 | ≤400 | 100-810 | 37 | 770 | 5~9 |
| 3YK2460 | 6000×2400 | 3 | 5~150 | ≤400 | 100-810 | 37 | 770 | 5~9 |
We can design and meet customers’ actual requirements.

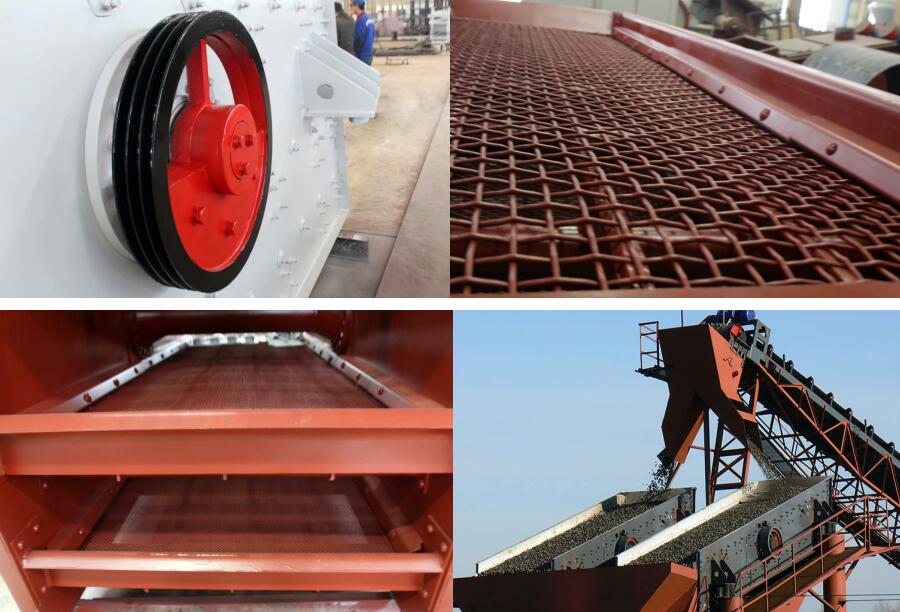

Main Features:
1.Simple and dependable Eccentric type system.
2.High screening capacity and High durability.
3.No transmission of screen panels.
4.Ready changing of screen plates.
5.Rigid and vibrating resistance screen body.
